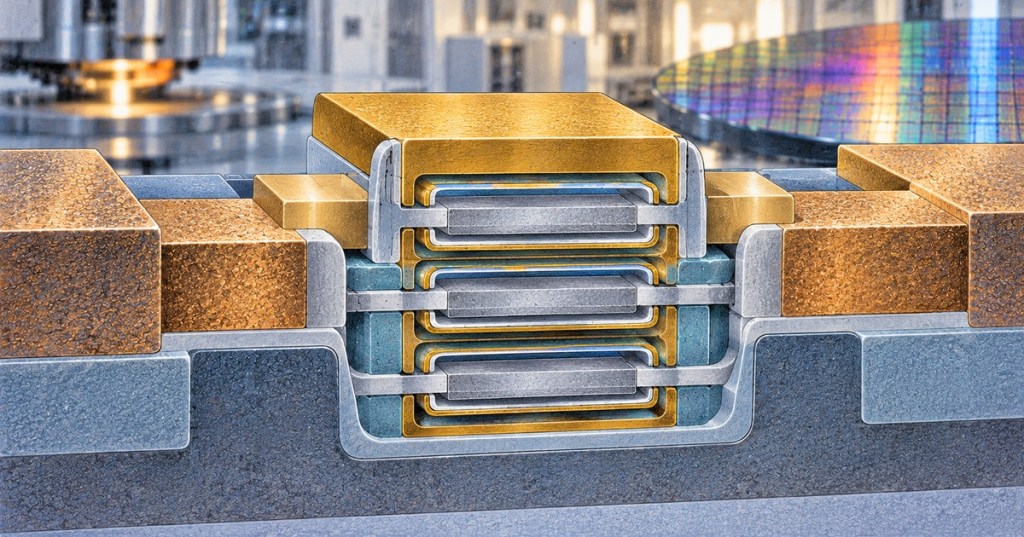

Gate-all-around nanosheet transistors extend the FinFET idea by surrounding the channel with gate material on every side. This gives the gate stronger electrostatic control over the channel, helps suppress short-channel effects, and provides new freedom to tune channel width for performance, power, and density.

This lesson follows OSSEC.008: FinFET Electrostatics. FinFETs control a thin fin from multiple surfaces; a nanosheet GAA device continues that progression by wrapping each suspended sheet on all four sides.

High Yield introduces the transition from planar MOSFETs and FinFETs to gate-all-around nanosheet transistors.

Elementary Overview

A transistor is a tiny electrically controlled switch. In a planar MOSFET, the gate mostly controls the channel from one side. A FinFET gives the gate more control by raising the channel into a fin. A gate-all-around transistor goes further: the gate wraps around a very thin channel so the drain has less ability to disturb it when the transistor is supposed to be off.

Asianometry explains why gate-all-around devices become attractive as FinFET scaling becomes more difficult.

Learning Objectives

• Explain why full gate wrap improves electrostatic control.
• Distinguish nanosheet width, nanosheet thickness, gate length, and sheet spacing.
• Estimate first-order effective channel width for stacked nanosheets.
• Connect GAA geometry to DIBL, subthreshold behavior, leakage, and drive current.
• Explain why nanosheet width can be more flexible than FinFET fin count.
• Identify parasitic, process-integration, and reliability tradeoffs.
• Relate Samsung MBCFET and Intel RibbonFET to the same broad GAA concept.

Full Gate Wrap Changes the Electrostatics

In a short-channel transistor, the gate competes with the source and drain for control of channel potential. When the gate surrounds a thin nanosheet, electric field from the gate reaches the channel from the top, bottom, and both sidewalls. IBM reported stacked nanosheet GAA devices as a path beyond FinFET because they combine strong electrostatics with high effective width per footprint. Intel describes RibbonFET in the same terms: a GAA channel fully surrounded by the gate for tighter current control and reduced short-channel effects.

Intel shows how RibbonFET surrounds ribbon-shaped channels with the gate to strengthen electrostatic control.

Nanosheet Width, Thickness, and Stack Count

Three geometry variables strongly shape a nanosheet device. Sheet width determines how much horizontal channel width is available for current. Sheet thickness affects electrostatic integrity, confinement, mobility, and process margin. Stack count multiplies the number of parallel channels. A simple first-order estimate for one rectangular sheet is W_eff ≈ 2(W_sheet + T_sheet) because the gate surrounds the perimeter of the channel; for N identical sheets, W_eff,total ≈ N × 2(W_sheet + T_sheet). Compact transistor models add corner, mobility, parasitic, and process effects, but the perimeter model captures why stacked sheets can supply large effective width in a compact footprint.

Samsung Semiconductor explains its nanosheet-based MBCFET implementation of gate-all-around technology.

Why Width Becomes a Design Knob

FinFET drive strength is commonly changed in discrete fin-count steps. Nanosheet GAA architecture can provide more continuous freedom because sheet width can be varied over a useful range while the gate still surrounds the channel. IBM highlights variable sheet width as an important nanosheet advantage, allowing different devices on the same chip to target different power-performance points. A wider sheet can increase drive current, while a narrower sheet can favor tighter electrostatic control and reduced capacitance, subject to process and reliability limits.

Intel’s earlier RibbonFET introduction shows stacked nanoribbon channels and why GAA architecture can deliver drive current in a smaller footprint.

DIBL, Leakage, and Subthreshold Behavior

Gate-all-around geometry reduces the drain’s influence on the source-channel energy barrier because the channel is thinner and surrounded by gate-controlled electric field. That generally improves DIBL and off-state leakage relative to a less-controlled geometry at comparable scaling. It does not eliminate the fundamental thermionic subthreshold-slope limit, gate leakage, junction leakage, gate-induced drain leakage, or reliability mechanisms. The architecture improves electrostatic leverage; it does not repeal MOSFET physics.

Intel Newsroom connects RibbonFET’s GAA structure to scaling, switching performance, and current control.

Process Integration and Parasitics

• Sheet release: sacrificial material must be removed without collapsing or damaging the suspended channels.
• Inner spacers: spacer geometry controls gate-to-source/drain overlap and parasitic capacitance.
• Gate fill: high-k dielectric and work-function metals must wrap conformally around tight sheet-to-sheet spaces.
• Source/drain epitaxy: the stacked sheets must connect to low-resistance source/drain regions without excessive strain or defects.
• Contact resistance: excellent intrinsic electrostatics can still be limited by external resistance.
• Self-heating: stacked, tightly packed channels and dielectric isolation complicate heat flow.
• Variability: sheet thickness, sheet width, gate length, spacing, work function, and interface quality all affect electrical behavior.

This nanosheet-era overview connects GAA structure to fabrication, leakage control, performance, and advanced-node scaling.

Industry Implementations

• Samsung MBCFET: stacked nanosheet channels with GAA gate control; Samsung began 3 nm GAA production in 2022.
• Intel RibbonFET: Intel’s ribbon-shaped GAA architecture used with its 18A process family.
• IBM nanosheet research: early stacked nanosheet demonstrations showed strong electrostatics and large effective width per footprint beyond FinFET.

Next-Gen Transistors- Why nanosheets and gate-all-around FETs are the next big shift in transistor structures
byu/Chipdoc inhardware

A hardware-community discussion compares planar, FinFET, and nanosheet GAA geometry in practical terms.

Engineering Exercise

1. Assume a nanosheet width of 40 nm and thickness of 6 nm. Estimate the first-order gate-controlled perimeter for one sheet using 2(W + T).
2. Calculate the corresponding first-order effective width for a three-sheet stack.
3. Repeat the calculation for a 50 nm-wide sheet while keeping thickness and stack count constant.
4. Explain which change primarily increases drive capability and which dimensions most directly affect electrostatic control.
5. List four parasitic or manufacturing effects that could prevent the wider device from delivering ideal proportional current gain.

Knowledge Check

1. What distinguishes a GAA nanosheet transistor from a FinFET?
2. Why does full gate wrap improve short-channel control?
3. What are the three major nanosheet geometry knobs discussed in this lesson?
4. What is the simplified perimeter-based effective-width expression for one rectangular nanosheet?
5. Why can nanosheet width offer more design flexibility than FinFET fin count?
6. Does GAA eliminate the thermionic MOSFET subthreshold limit?
7. Name three parasitic or process-integration challenges unique or especially important to stacked nanosheets.
8. What are Samsung’s and Intel’s names for their major GAA implementations?

Answers

1. The gate surrounds each thin channel on all sides instead of controlling a fin mainly from three surfaces.
2. The gate has stronger electrostatic leverage over the entire channel body, reducing drain influence on the source-channel barrier.
3. Sheet width, sheet thickness, and sheet stack count.
4. Approximately 2(W_sheet + T_sheet).
5. Sheet width can be varied over a range, whereas FinFET drive strength is often quantized by integer fin count.
6. No. GAA improves real-device electrostatics but does not remove the fundamental Boltzmann limit of a conventional thermionic MOSFET.
7. Examples include inner-spacer control, sheet release, conformal gate fill, source/drain epitaxy, contact resistance, self-heating, and nanosheet dimensional variation.
8. Samsung MBCFET and Intel RibbonFET.

Elementary Conclusion

The simplest way to remember GAA is: more gate around a thinner channel means better control. FinFET put the gate around several sides of a fin. Nanosheet GAA wraps the gate around the complete channel and stacks several channels to recover strong current. The engineering challenge is no longer only making the transistor smaller; it is balancing channel geometry, resistance, capacitance, heat, reliability, and manufacturing precision at the same time.

Previous Related Lessons

• OSSEC.008: FinFET Electrostatics
• OSSEC.007: Short-Channel MOSFET Effects
• OSSEC.006: Long-Channel MOSFET Operation
• OSSEC.005: MOS Capacitor Physics

Primary References

• IBM Research — Stacked Nanosheet Gate-All-Around Transistor to Enable Scaling Beyond FinFET
• IBM Research — Review of Gate-All-Around Nanosheet FET Process Opportunities
• Intel Foundry — Intel 18A and RibbonFET
• Samsung Foundry — Logic Node and GAA Process Technology
• Samsung Semiconductor — GAA Transistors
